CDS NIS2 2nd order lines

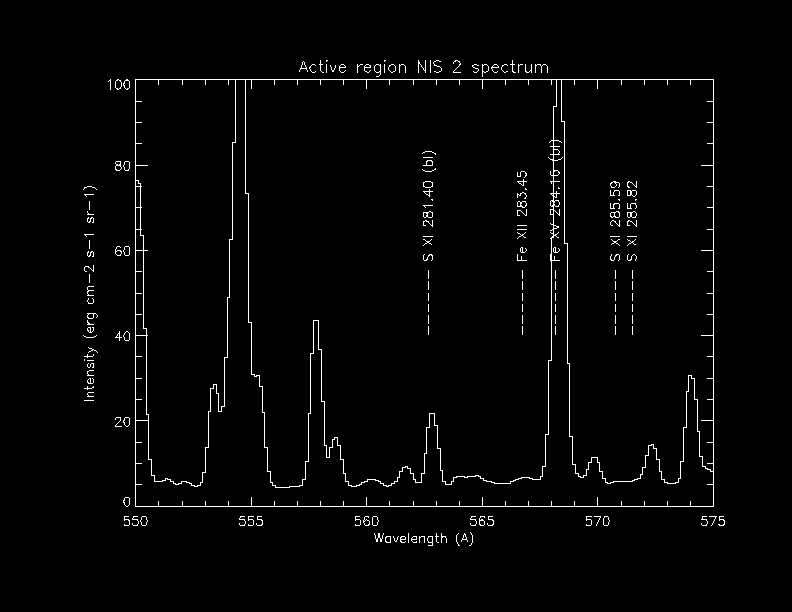

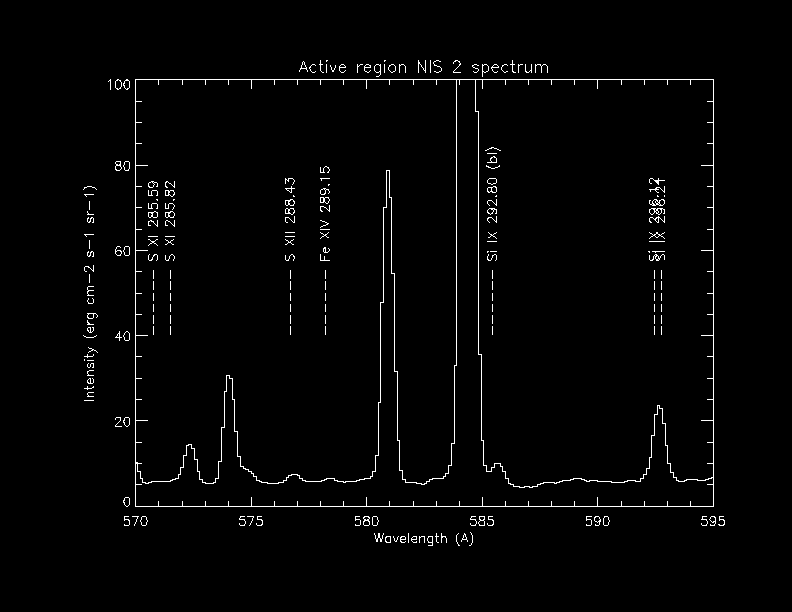

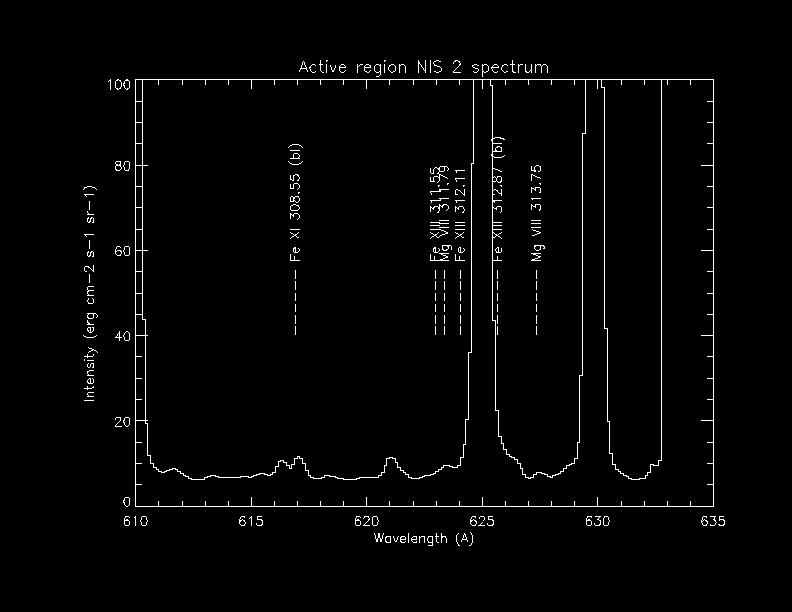

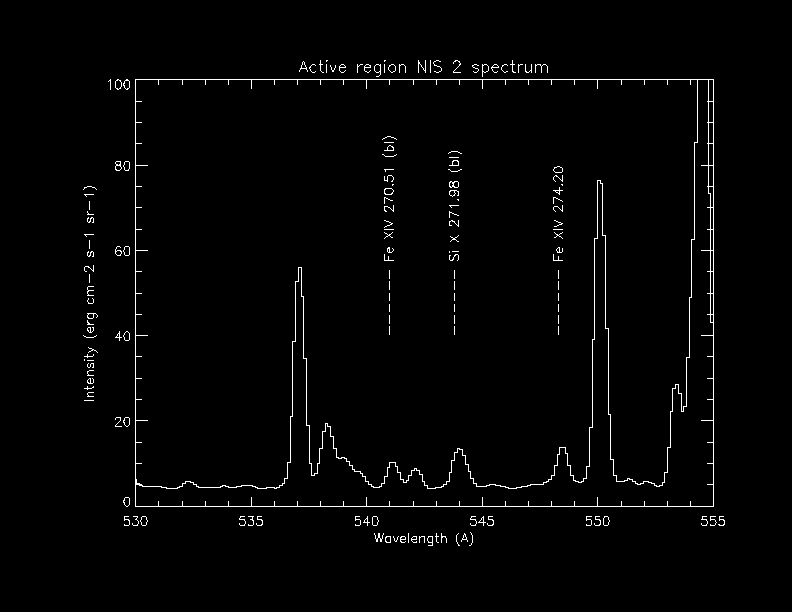

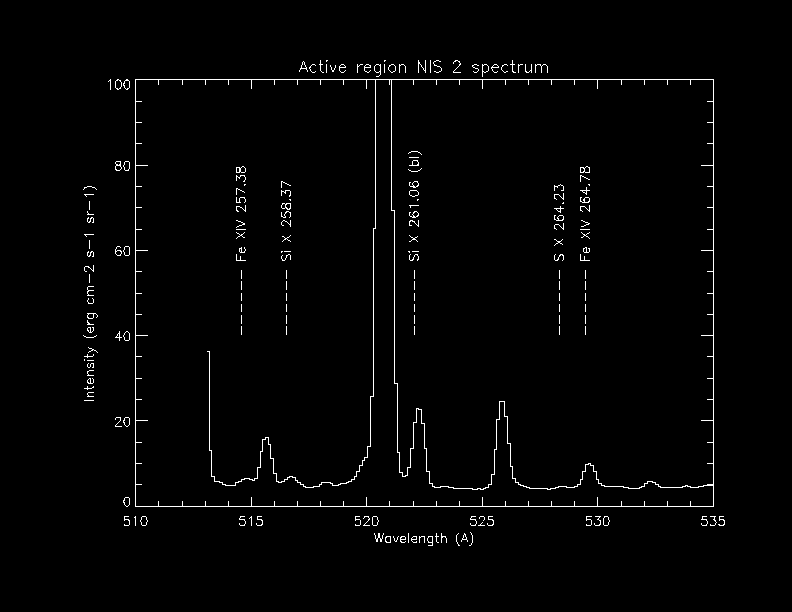

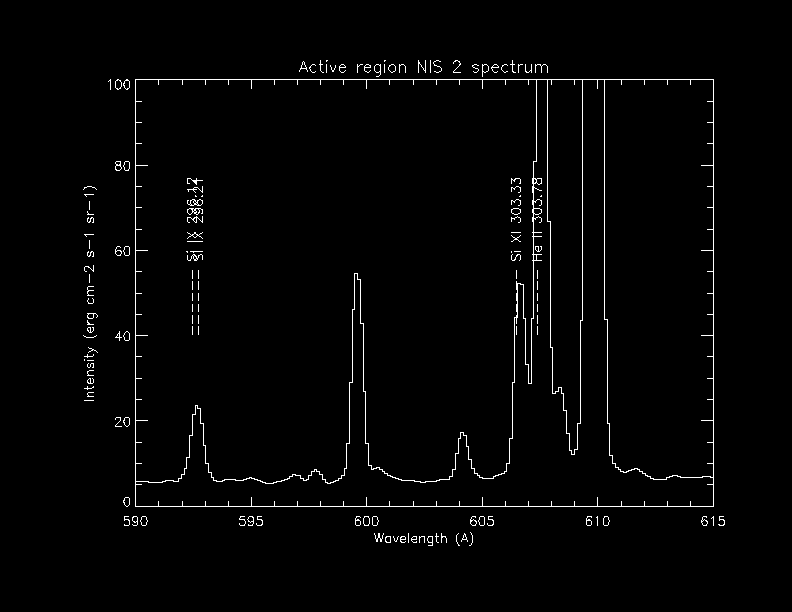

The following six plots, provided by Enrico Landi , illustrate the appearance of second order lines in the NIS2 spectra of Active Regions.

The lines marked with (bl) are blended with first order lines, but the second order features do provide significant contribution to the total intensity (second order contribution > 20% of the total, usually)
