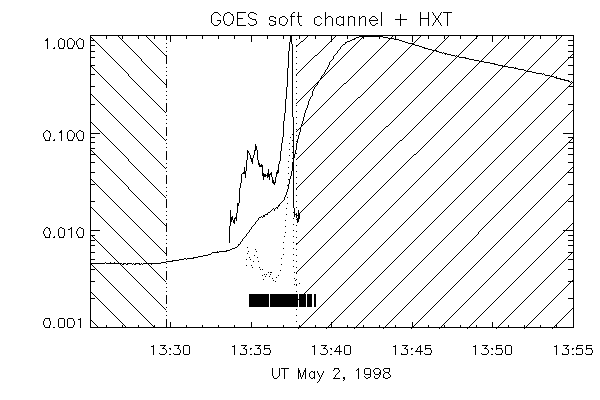

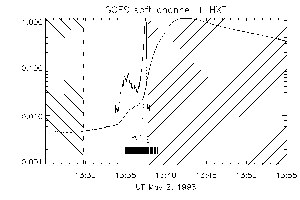

The hatched regions show (left and right) a passage of Yohkoh through the South Atlantic Anomaly, and orbit night. The flare onset was interrupted by the Earth's shadow, which produced the sharp drop in the HXT low (13-23 keV) and M1 (23-33 kev) channels shown, the latter with a factor of ten displacement for visibility. No doubt the Neupert effect is working well here! Because of the design of its spectral passbands, one can read off the hard X-ray spectral index from the ratio of M1 to L: equal counts corresponds roughly to a photon number spectral index of 2.0. This very impulsive event has, as expected, a very hard spectrum. Tick marks at the bottom of the plot show soft X-ray image times.

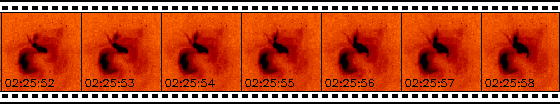

The flare development was eruptive, but with an interesting pattern. The brightest ejection proceeded almost directly towards disk center, from the flare location at S15, W15; this implies a large inclination angle to the local vertical. The ejection included a sinuous jet structure and obvious flow to the northeast, both there and to the north of the jet. The jet seemed to be anchored in bright point somewhat distant from the brightest flare loop. Here's the movie in the half-resolution data, .gif format at 150 kB:
|The flare itself (image at right, at full resolution) consisted initially of the bright loop seen just to the north of the (S15,W15) intersection of heliospheric grid lines (N.B. - approximate!). This is a 28-msec exposure in the AlMg filter. The jet can be seen faintly to the NE of this loop, and the sigmoidal curl (direct S because it's southern hemisphere) is clearly visible.|
|The image at left, in the SXT Be filter, shows a blow-up of the central 32x32-pixel region (image width ~60,000 km), with a contour showing the half-maximum level. This is the bright loop that dominates the rise phase of this flare.|
The key to understanding how flares launch such waves is probably in the momentum generated by the process. So at first glance, everyone will immediately understand why this subject is at the frontier of research: people can use the term "magnetic explosion" to describe a flare, which indeed shoots stuff outwards in all directions. So, observationally it's appropriate. But the same people would be certain that flare energy derives from stored magnetic energy, and to convert it into visible form clearly requires a "magnetic implosion"! From this juxtaposition it is clear that there may be some uncertainty about what is happening at the core of a flare, so please stay tuned for future science nuggets that will continue this interesting story.
