X pattern on the Sun

Science Nugget: September 22, 2000

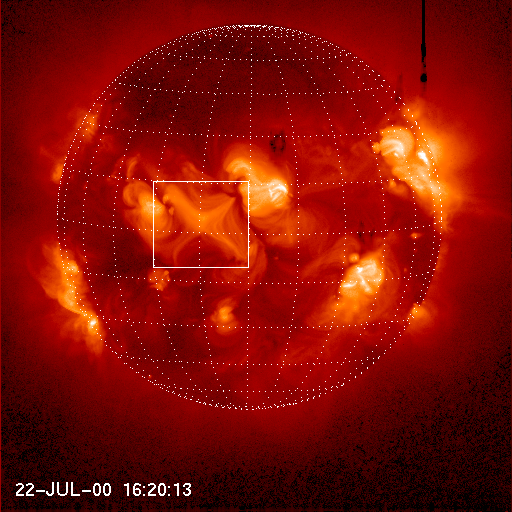

This is another example of X-ray loops crossing the solar equator, as reported several times in our nuggets. But this time the loops form a spectacular 'X', and it occurs to me that I should show the SXT data together with EIT and MDI data. In the following picture of an SXT image (click to enlarge), both the latitude and longitude lines are drawn with a 15 degree step, so the X pattern is centered at the longitude of E=15 degrees, and slightly above the equator. Note that black areas on the western side are artifacts from combining a pair of short and long exposure images to broaden the dynamic range.

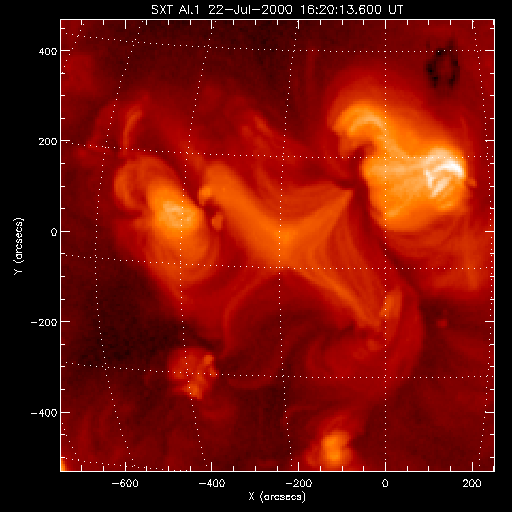

The next figures provide zoom-up views of the region (click each of them to enlarge). They are (from left to right) SXT (Al.1 filter), MDI and EIT (195 ). The SXT image reminds us of the shape of magnetic field lines near the diffusion region in a 2-d reconnection model. Of course, this is only an impression, since the loops must have 3-d structures, sticking out of the image plane. Moreover, it is not clear which ones represent incoming fields and which ones represent those driven out after the reconnection.

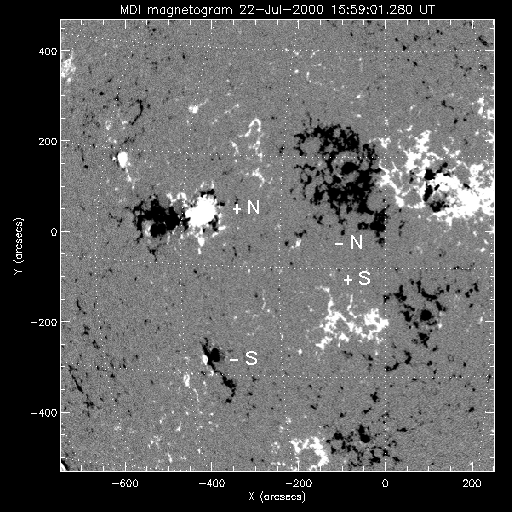

The middle figure gives us a hint as to where the loops are anchored. Remember, SXT does not show the loop footpoints, because it is not sensitive to temperatures below 1-2 MK. So locating the footpoints on a photospheric magnetogram such as the middle figure is always tricky. Please try to guess the footpoints of the loops that form the X shape, by remembering that they have to connect different polarities (between white areas such as +N and black areas such as -S). Note that the loops that form the X are already reconnected loops, not representing the original bipoles as they emerge. For example, the +N emerged with the negative (black) area to the east, and the partner of -S should be the small positive (white) area to the east. The right figure simply shows that the loops that formed the X did not show up in the EUV images that are sensitive to temperature of 1-2 MK, indicating that the loops are hotter than this range.

The following movie shows the evolution of the X pattern. It appears that the part running east-west became faint by 23-Jul-00 02 UT.

The next movie shows EIT 195 images. The area corresponding to the X pattern is essentially featureless. Loops reminiscent of the X pattern appear only around 23-Jul-00 00 UT, possibly representing the cooling signatures of the X-ray loops that formed the X pattern.



September 22nd, 2000

N. V. Nitta <nitta@lmsal.com>.
