Off-axis effective area

Not only the shape of the X-ray PSF, but also the effective area of the mirrors is a function of off-axis angle within the mirrors' 30' FOV. With increasing off-axis angle, less of the photons entering the telescopes actually reach the focal plane. This effect is called ``vignetting''. The vignetting of the XMM telescopes, which is reflected by the decline of the mirror module's effective area as a function of off-axis angle, is displayed for a few energies in Fig. 14.

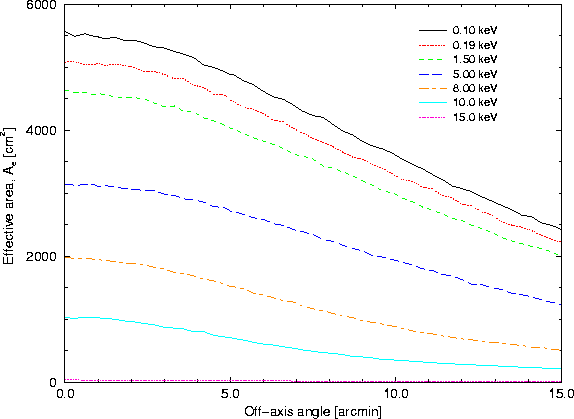

Figure 14: The total effective area, Ae, of all XMM mirror modules, at a few selected energies, as a function of off-axis angle (0'-15'). The numbers shown here do not include any reductions due to detector responses.
\begin{figure}
\begin{center}
\leavevmode
\epsfig{width=0.6\hsize, angle=270, file=figs/eff_area_offaxis.eps}
\end{center} \end{figure}
