CSL test results

For the raw data, anon ftp to ftp://mssls7/pub/csl/

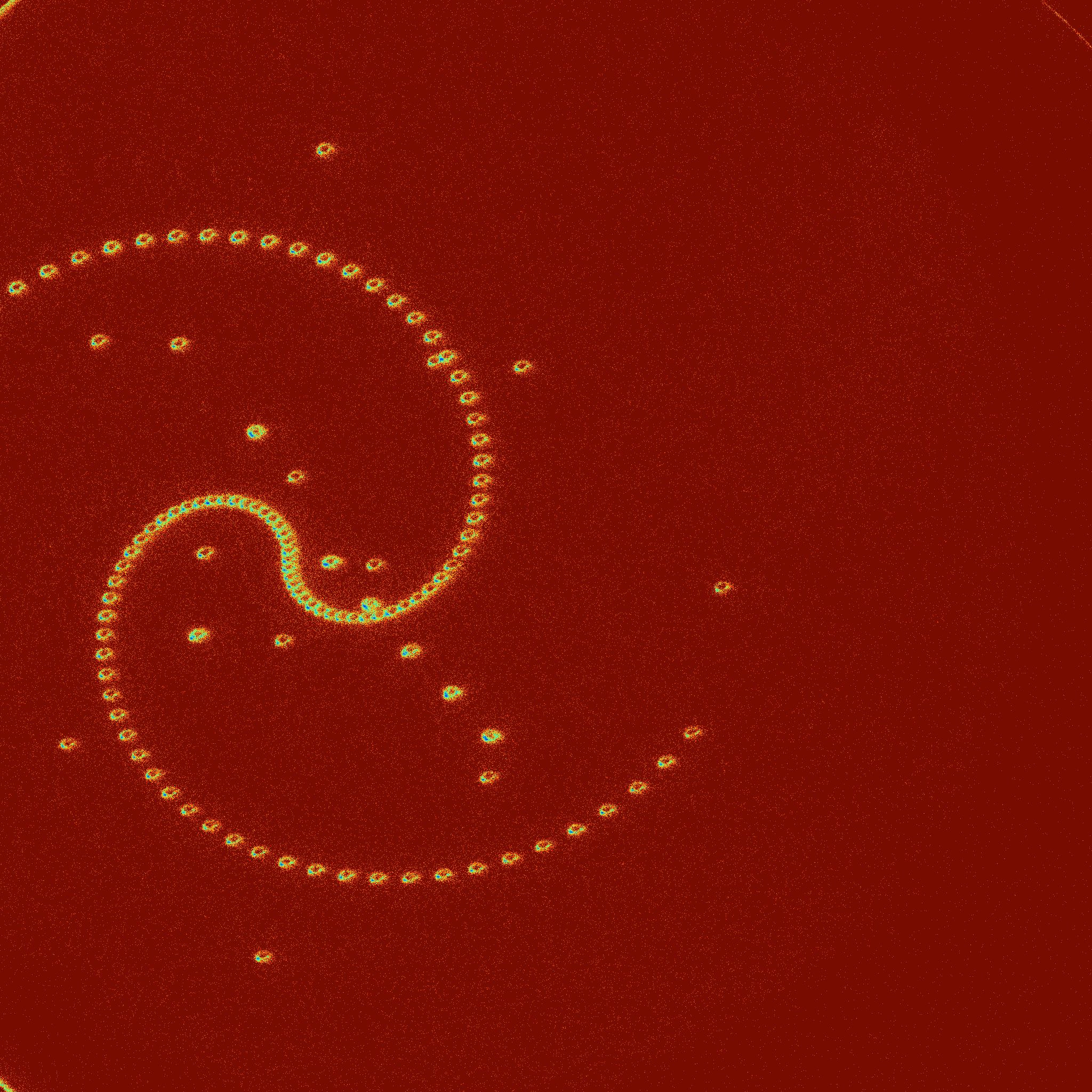

Prime channel: old bounds
This is the first long exposure image result from CSL
Click on this small image for full size image
This is the image of a mask with a spiral of pinholes and other pinholes.
You can see each point is blurred into a flattened ring by the main mirror problem and maybe test setup problems.

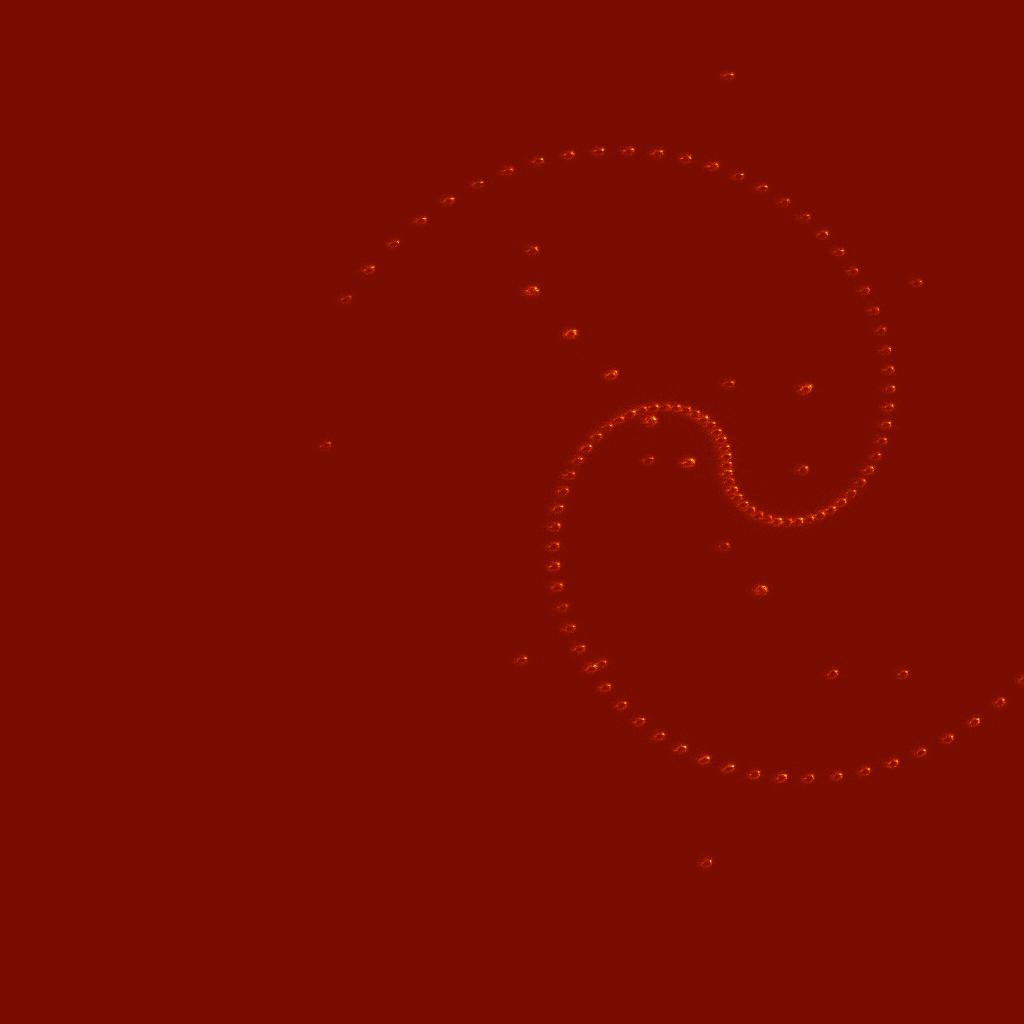

Prime channel: good bounds, log plot
Click on this small image for full size image

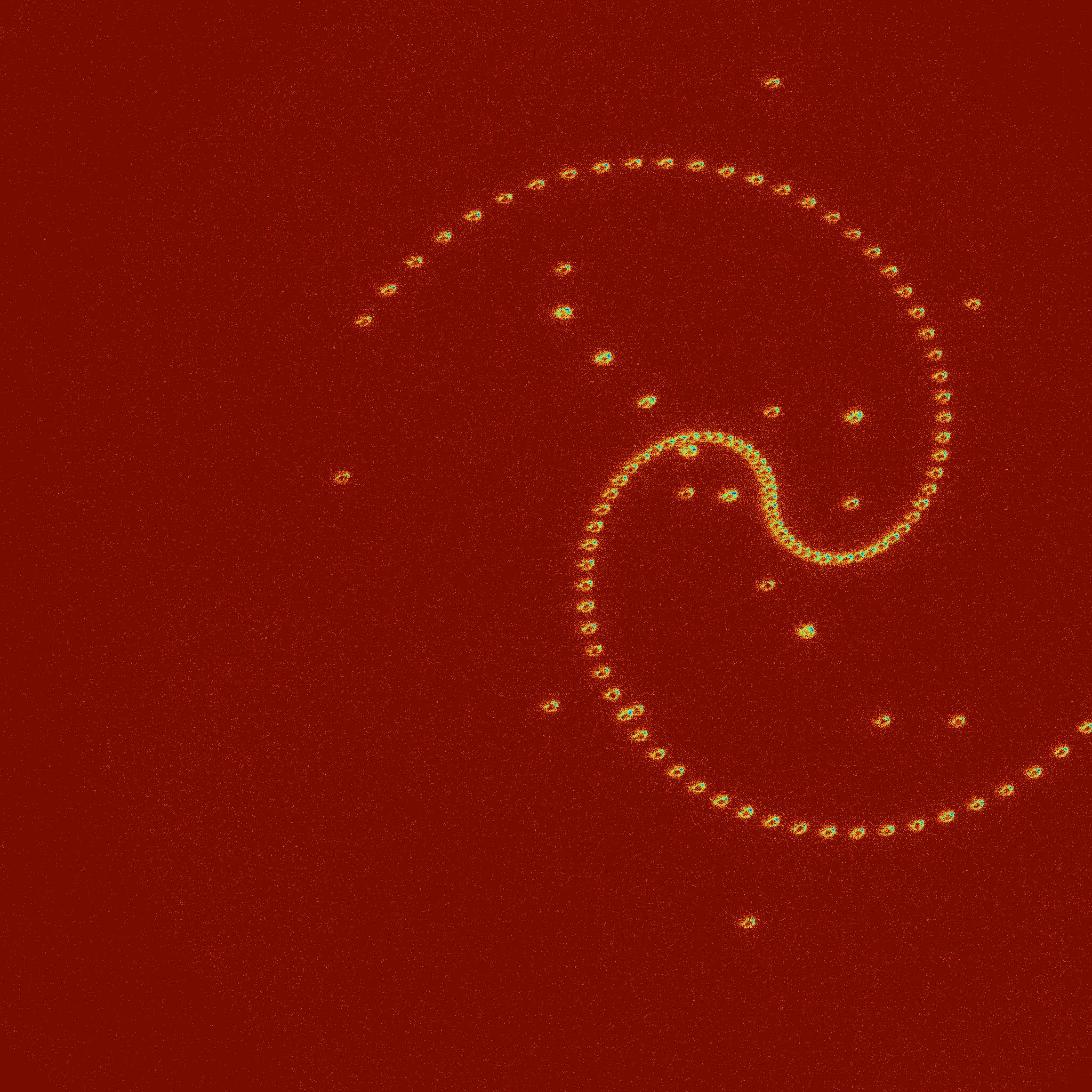

Redundant channel: good bounds, log plot
Click on this small image for full size image

After vibration tests

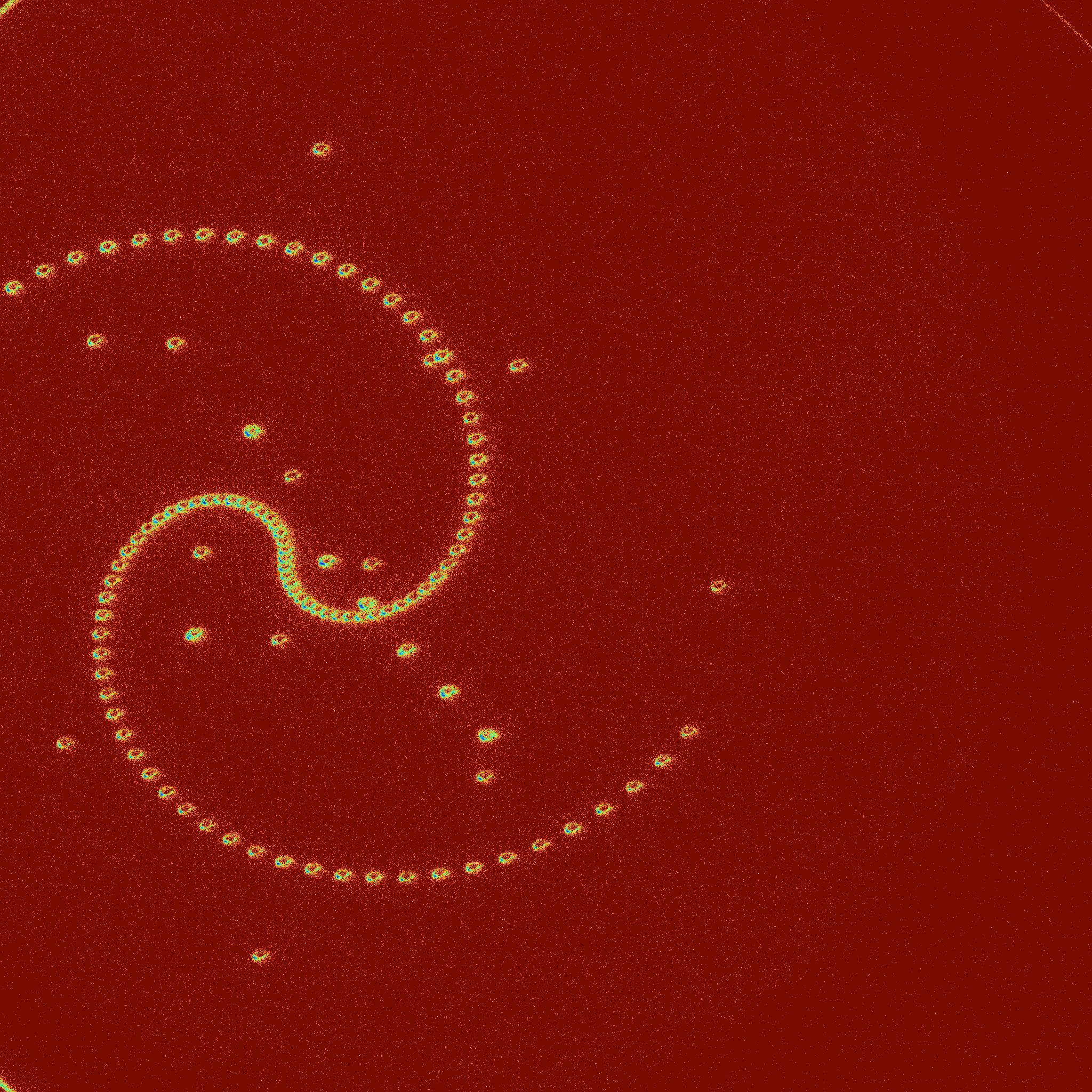

Redundant channel: good bounds, log plot
Click on this small image for full size image

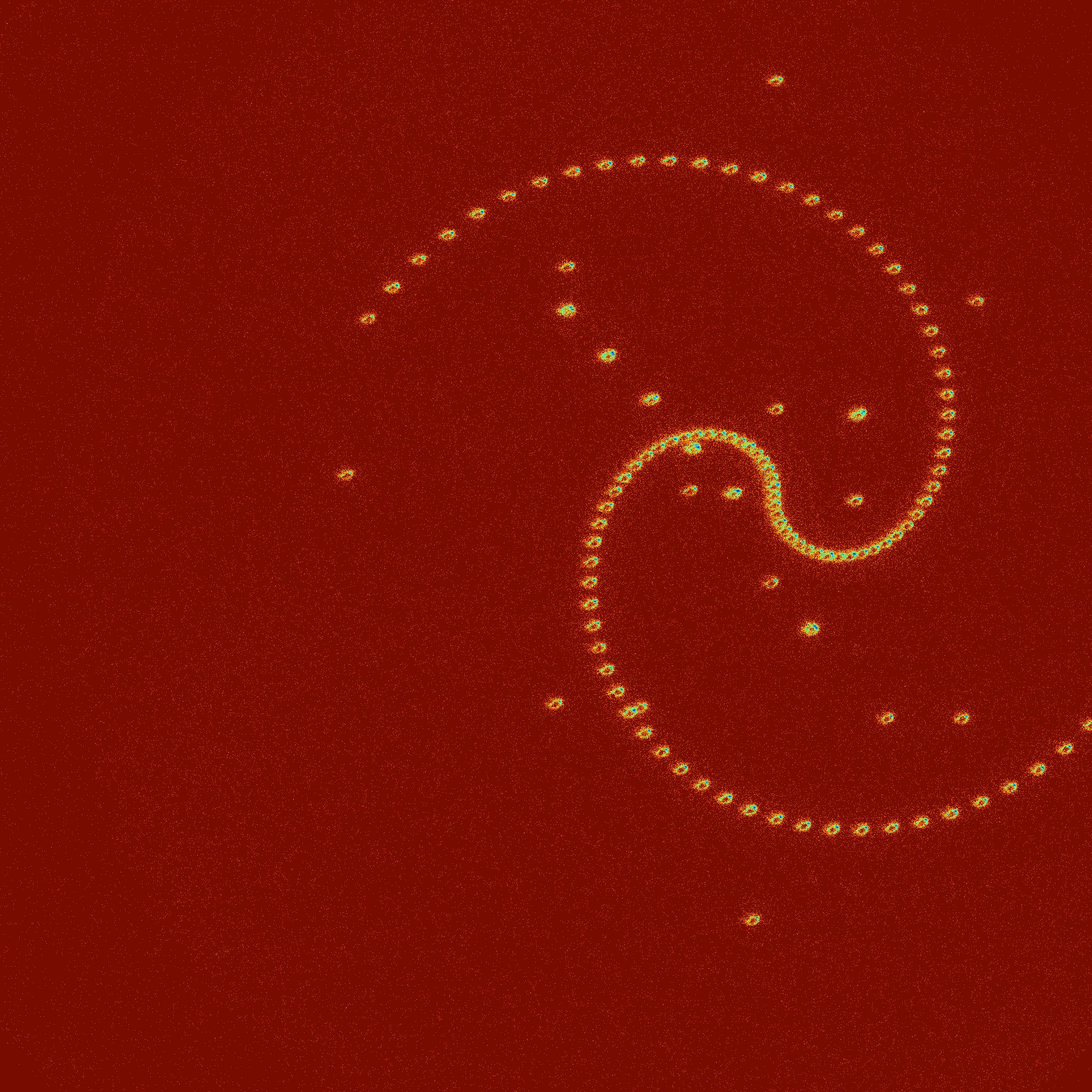

Prime channel: good bounds, log plot
Click on this small image for full size image

Prime channel: flat, LED illuminated
Full flight detector prime and DEM redundant
Click on this small image for full size image

Redundant channel: flat, LED illuminated 80000 cnt per s
Full flight detector redundant and DEM prime
Click on this small image for full size image
