Feeding UVOTGRASPCORR a catalog of selected stars to lock onto

Note:

This page applies only to the reduction of UVOT grism observations
without using an accompanying lenticular filter image. In that
case the sky position of the weaker zeroth orders is matched to
the USNO-B1 catalog by the UVOTGRASPCORR tool. The image header
of the image containing the spectrum is updated accordingly.

Sometimes this fails. Then your wavelengths jump around from one
spectrum to the next.  Here is a possible solution. It requires
some work and may depend on the roll angle of the observations
being in a limited range, or you may have to do this repeatedly.

Aspect correction problem identification

The straighforward way to check if the WCS keywords in the header of a grism image are correct is to open the image in “DS9”, then blink with the DSS image, or plot catalog positions.

So here is what I do:

ds9 sw00030366009ugu_sk.img
scale -> log
zoom out
in ds9: analysis -> catalogs -> optical -> gsc 2.3
the catalog panel pops up, -> retrieve
in the panel edit the filter:
$Fmag > 13 && $Fmag < 17
press <filter> button

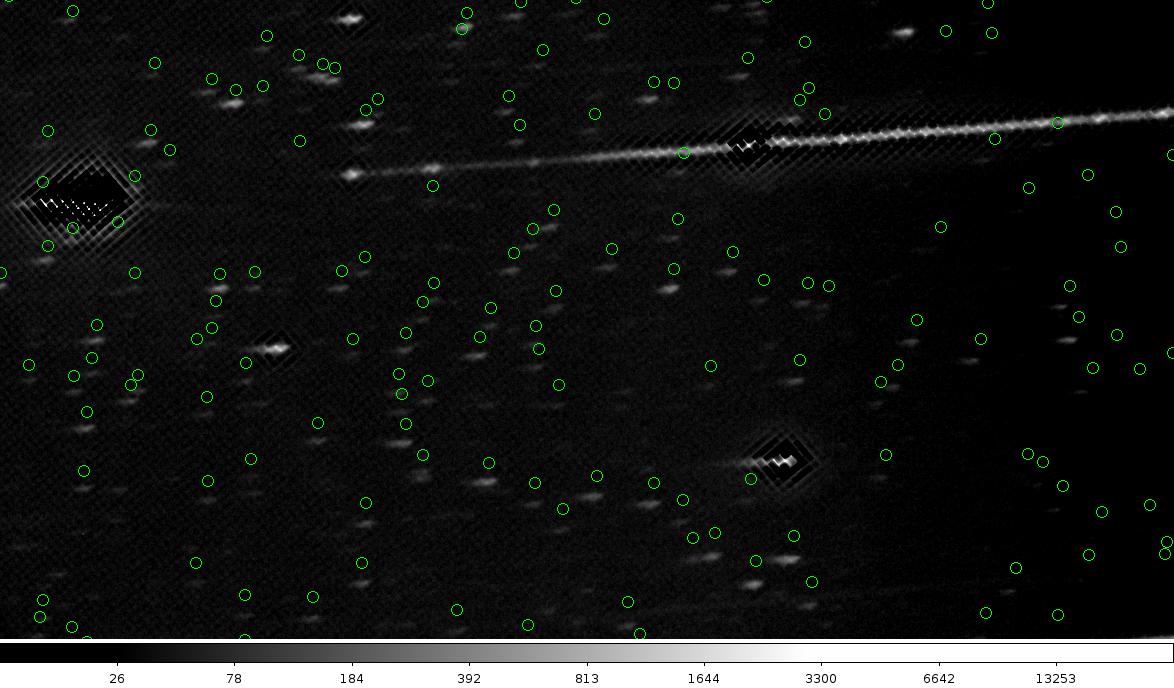

Now we get the following figure:

../../_images/aspect_problem.jpeg

As you can see, the zeroth orders typically have a circle for the catalog position just above them. Here the aspect is not good. Checking the header shows that uvotgraspcorr was not run (ASPCORR not set to GRASPCORR).

In order to get a good data set with uvotgraspcorr applied, download the reprocessed data from MAST or the HEASARC Swift archive. Otherwise, process yourself using my (unofficial!) script:

grismpipe sw00030366009ugu sw00030366009sat.fits

The script can be downloaded here :download: grismpipe <grismpipe>

To check the header of the reprocessed file:

ftlist sw00030366009ugu_sk.img+1 hk

which gives (part):

(...)
HISTORY P12 chatter = 1
HISTORY P13 history = yes
HISTORY P14 mode = ql
HISTORY END PARAMETER list for imagetrans_1.2.0
HISTORY
UTELDEF = 'swugu0160_20041120v105.teldef' / UVOT TELDEF file name
DTELDEF = '/sciencesoft/CALDB/data/swift/uvota/bcf/teldef/' / UVOT TELDEF direct
ASPCORR = 'GRASPCORR'
A_ORDER =                    3
B_ORDER =                    3
A_1_0   =    0.000808337503837
A_2_0   =   -1.00634932413E-05
A_1_1   =   -6.05027923295E-07
A_0_2   =   -7.40281887760E-07
A_3_0   =    6.75543414620E-09
A_2_1   =   -2.20404783943E-08
A_1_2   =    1.25607162442E-08
A_0_3   =   -8.19315287996E-09
B_0_1   =     -0.0119355520972
(...)

As you can see, the ‘ASPCORR’ keyword has now been set to ‘GRASPCORR’, while also the distortion coefficients for the zeroth orders on the image are present. Good. Let’s try again.

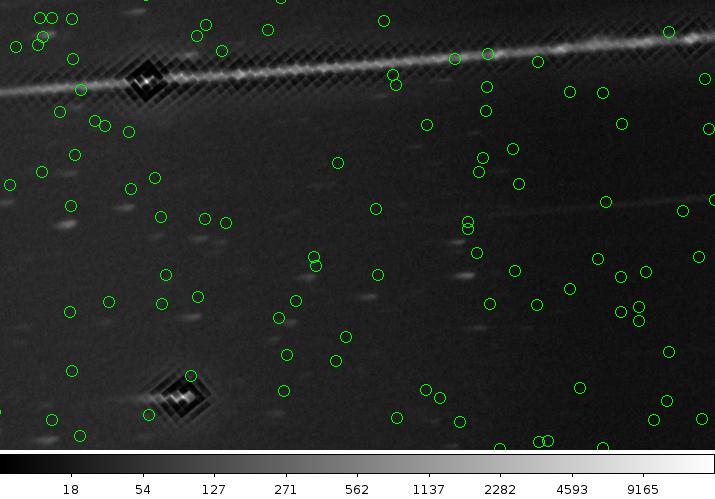

../../_images/aspect_bad_still.jpeg

Although the “uvotgraspcorr” program ran, it clearly failed. The zeroth orders still don’t match. Now, if you have a single spectrum, you can edit the WCS header keywords to align the image. However, if there are more images, a better method is needed. The reason uvotgraspcorr could not match the catalog is that it confused the sources. Your eye easily picks that up, but the matching algorithm doesn’t. The matching is using triangles of the fainter stars on the sky. So we will try to feed uvotgraspcorr our own catalog which is a subset taken from the USNO-B1 catalog. We cannot use the bright zeroth orders, since they are too extended, but we can find nice sets of triangles. What I do in the following depends on how crowded your field is. This one is pretty crowded, so I am chosing the ones that look brightest and still small.

I finally settled on a filter like:

$Fmag < 15.5 && $Fmag >13.0&& $_DEJ2000 > -06.96&&$_RAJ2000 >  267.4

save -> tab-separated-value -> catalog.tsv

I now have a file:

_RAJ2000      _DEJ2000        GSC2.3          RAJ2000       DEJ2000   Epoch       Fmag        jmag        Vmag        Nmag Class      ae
267.558773    -06.776805      S7XO018785      267.558773      -06.776805      1989.564        15.41   16.79           14.60   0       3.69    0.15
267.556488    -06.779179      S7XO018675      267.556488      -06.779179      1989.564        13.89   15.58           13.05   3       5.51    0.28
267.531593    -06.778963      S7XO018657      267.531593      -06.778963      1989.564        15.13   16.44           14.34   0       4.14    0.20
267.588769    -06.780796      S7XO018581      267.588769      -06.780796      1989.564        14.31   16.07           13.34   3       5.08    0.27
267.533930    -06.781334      S7XO018510      267.533930      -06.781334      1989.564        14.76   16.66           13.72   3       4.63    0.31
267.544399    -06.786720      S7XO018227      267.544399      -06.786720      1989.564        14.88   16.31           13.81   0       3.92    0.12
267.548245    -06.855490      S7XO014489      267.548245      -06.855490      1989.564        15.05   16.38           14.31   0       4.40    0.22
267.567991    -06.855803      S7XO014487      267.567991      -06.855803      1989.564        14.08   15.88           12.96   0       4.42    0.02
267.519343    -06.850837      S7XO014739      267.519343      -06.850837      1989.564        14.25   16.20           13.02   0       4.60    0.16
267.549267    -06.863718      S7XO013989      267.549267      -06.863718      1989.564        15.24   16.60           14.23   0       3.74    0.15
267.508769    -06.865075      S7XO013931      267.508769      -06.865075      1989.564        14.86   16.08           14.37   3       4.86    0.27
267.548635    -06.866673      S7XO013843      267.548635      -06.866673      1989.564        14.68   16.28           15.25   3       4.69    0.07
267.540147    -06.829210      S7XO015972      267.540147      -06.829210      1989.564        15.37   16.44           14.51   0       3.51    0.06
267.539192    -06.824686      S7XO042330      267.539192      -06.824686      1989.564        14.34   16.33           13.25   3       5.40    0.36
(...)

It is actually 385 records long. I delete the first line to get a proper ASCII table, but I use that below. The Fmag is what we want to use, in column 7. Now we need to make a descriptor file (or whatever it is called), for the catalog input to “UVOTGRASPCOORR”. Save as catalog1.spec:

# Catalog descriptor for GSC over the web.
# Note that the StarID::SearchCat uses the scat WCS Tool.
type => StarID::SearchCat
fields => RA1,DEC1,ID,RA,DEC,EPOCH,MAGF,MAGJ,MAGV,NMAG,CLASS, ae
packed => 0
data => user
catalog/type => Indexed
catalog/n => 4

mag => MAGF
path => /Volumes/data/various/RS_Oph/catalog1.cat

First we have to edit the header file to remove the wrong ‘ASPCORR’ keyword (we do this for the detector image), then run uvotgraspcorr

fparkey None "sw00030366009ugu_dt.img[1]" ASPCORR

uvotgraspcorr catspec=/Volumes/users/Users/kuin/various/RS_Oph/catalog1.spec sw00030366009ugu_dt.img clobber=yes

For some reason, uvotdetect does not find any source positions.

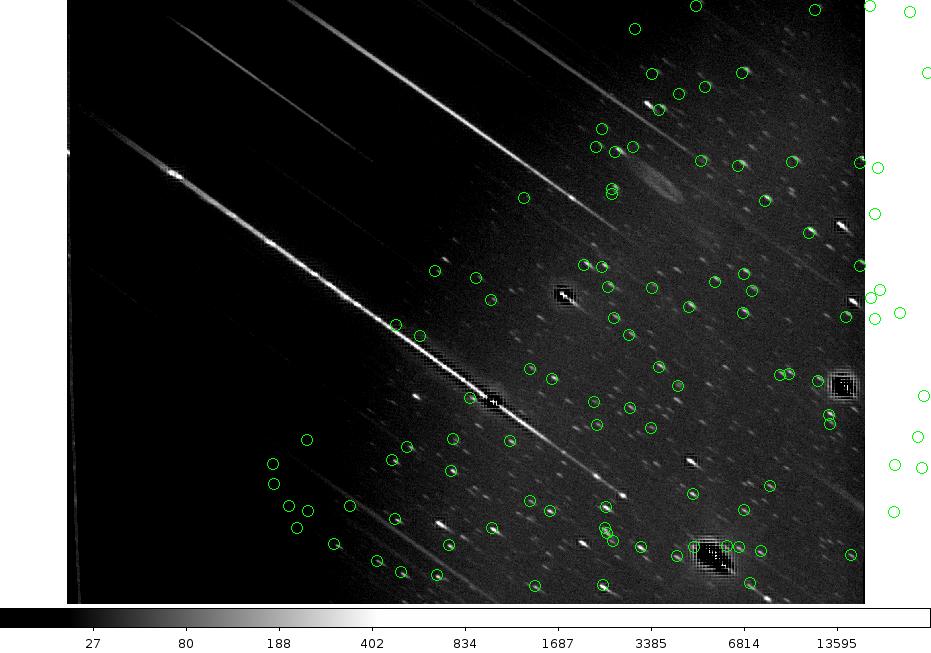

In DS9, we chose the WCS-S system (WCS -> multiple WCS -> WCS-S). Then load the catalog again. Apply the same filter as above.

../../_images/aspect_better.jpeg

Unfortunately, this does not work when I try to update the sky image. I suppose I need to have a script to reprocess using the special catalog I made. However, the match now seems close to within a few pixels, so the wavelength error should not be too much (1 pixel~3.2A).
