EIS Master Study Database

Copying new study definitions to the EGSE computer using a pen drive

This procedure describes the steps to copy the new study definition(s) onto the EGSE computer (msslqm) prior to testing and importing it/them into the master study database.

Procedure

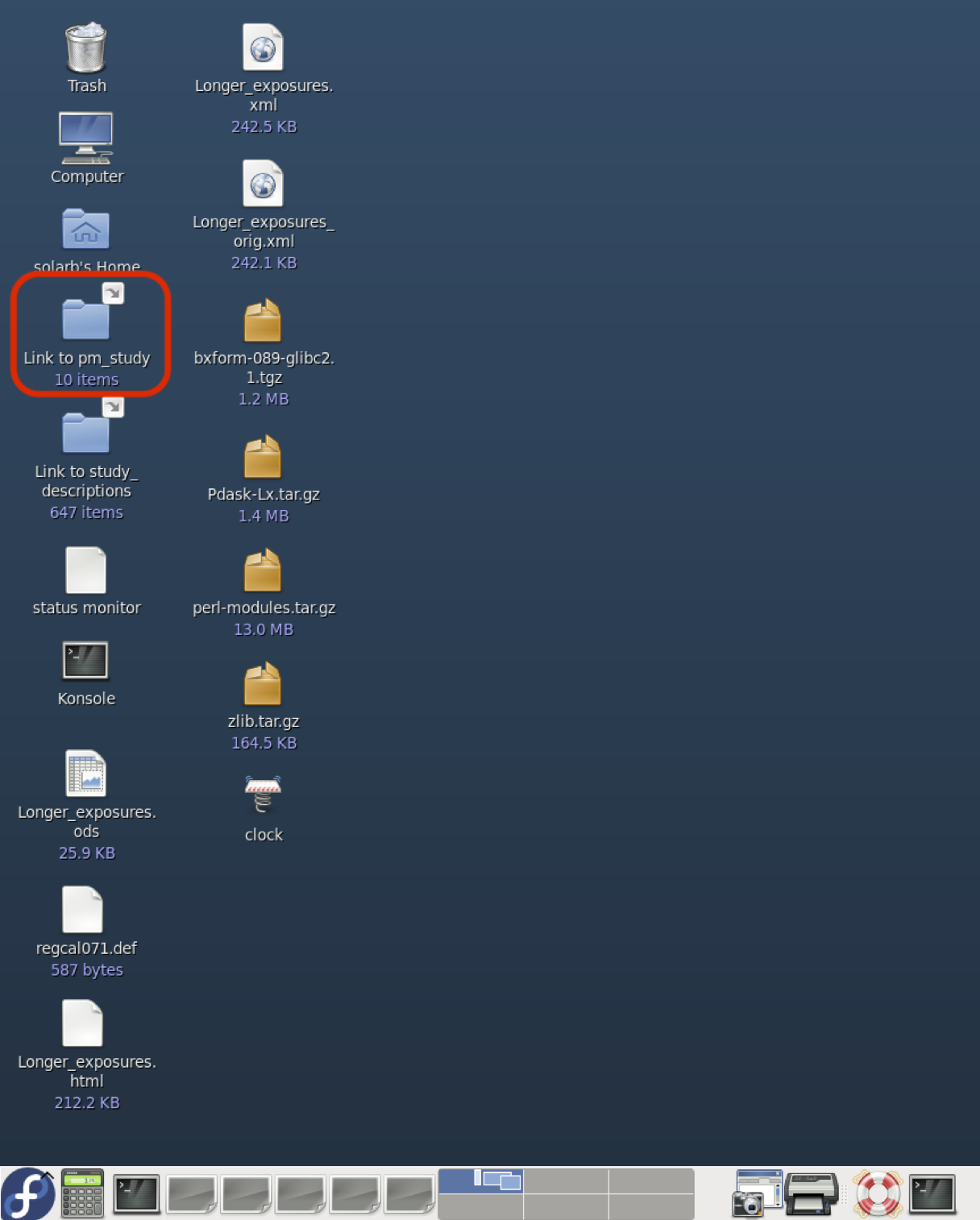

  1. Open a filesystem window by double clicking on the 'Link to pm_study' icon (circled in red) on the desktop:

    ../images/desktop/screenshot_pm_study.png

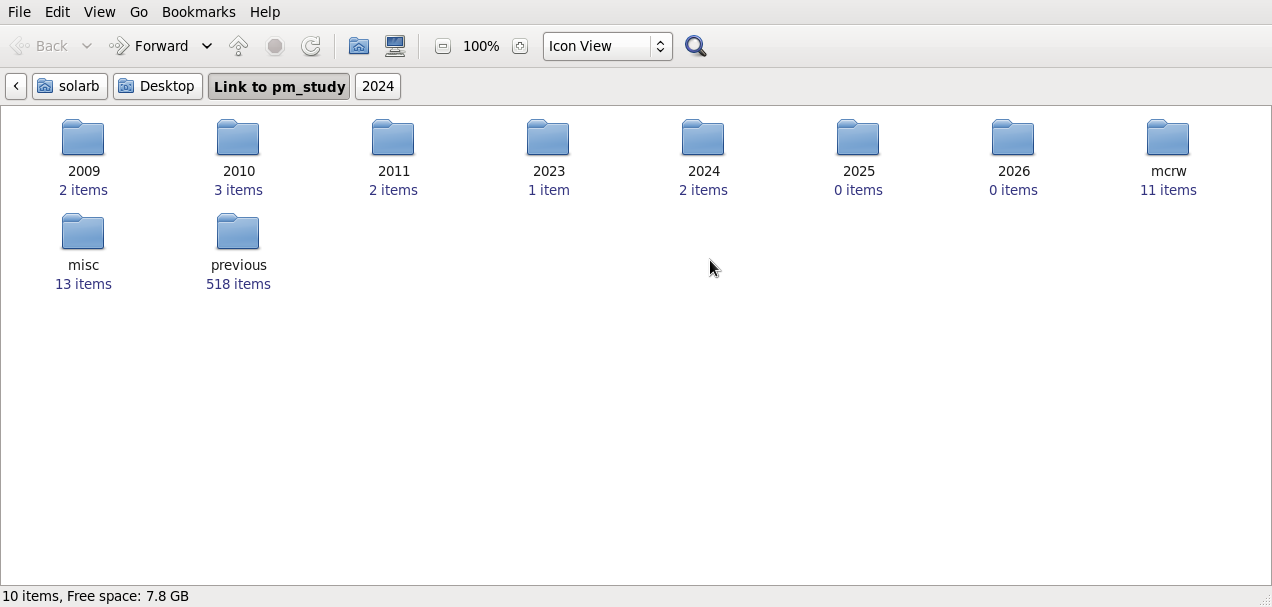

    This will put you in the directory which is used to store hew study definitions solarb. Open the folder '2024' by double-clicking it's icon.

    ../images/windows/pm_study.png

  2. Insert the pen drive into a usb port on the front of msslqm.

  3. A new filesystem window will appear, showing the top level directory of the pen drive.

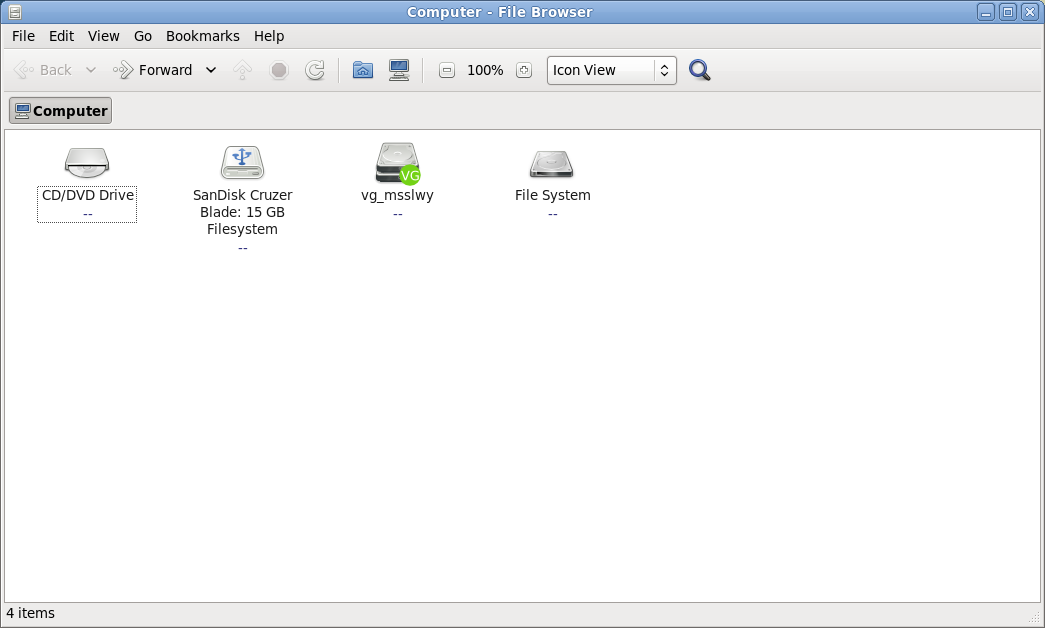

    In this example the name of the pen drive is 'SanDisk Cruzer Blade: 15 GB Filesystem'.
    ../images/windows/pen_drive_on_msslqm.png

  4. Double click the pen drive and navigate to the directory/folder containing the new study or studies.

  5. Drag and drop each folder from the pen drive to the window opened in step 1.

  6. Eject the pen drive.

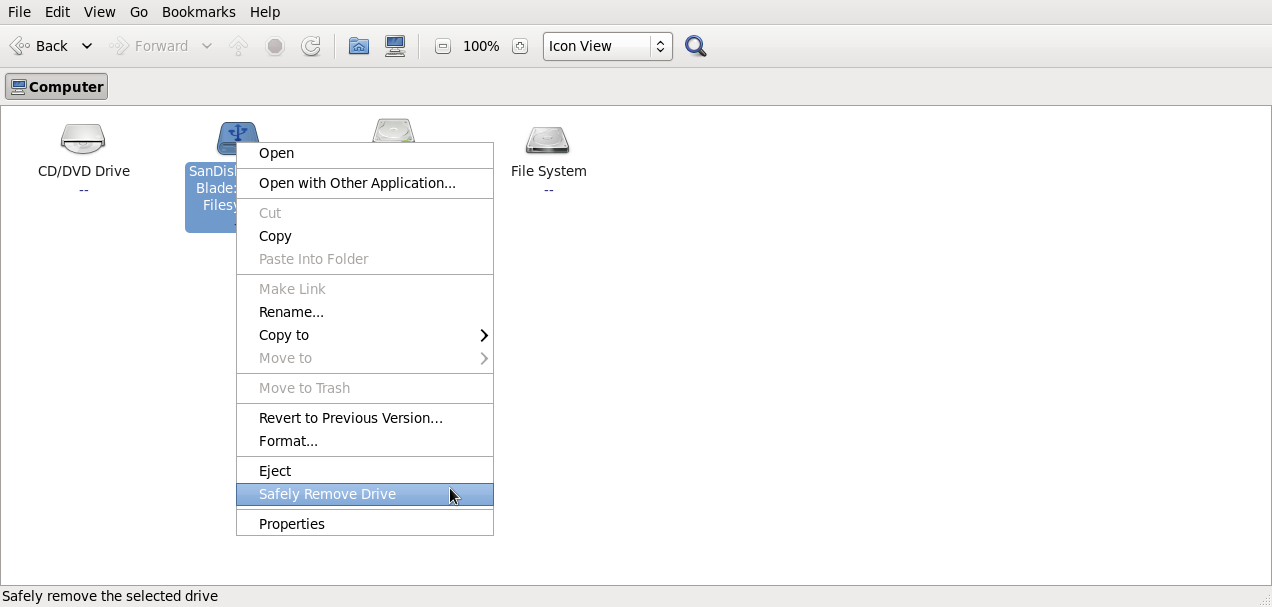

    Go to the top level of the pen drive and right click the pen drive icon. This opens a pop-up menu.
    images/windows/remove_pen_drive.png
    Select 'Safely Remove Drive' from the pop-up menu. Remove the pen drive from the front of msslqm.
