Stopping the flight spare (pm) EGSE software

This procedure describes the steps to stop the EGSE software prior to turning the ICU off.

After testing the ICU software should still be in Auto mode. Before stopping the EGSE software it is recommended to put the ICU software in Standby mode.

Procedure

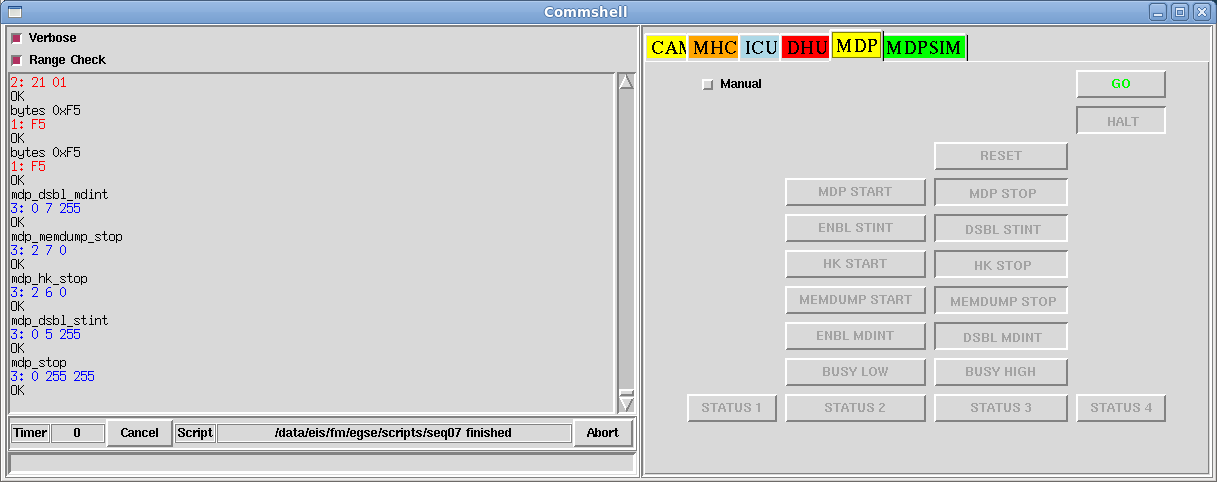

  1. If not already selected, click on the blue ICU tab of the commshell window.

    ../images/egse/Commshell.png

  2. Click once on the Manual button in the commshell window.

    ../images/egse/manual.png

    The ICU software will move to manual mode as indicated on the Status Monitor.

  3. Click once on the Standby button in the commshell window.

    ../images/egse/standby.png

    The ICU software will move to standby mode as indicated on the Status Monitor.

  4. Click on the yellow MDP button in the commshell window.

    ../images/egse/Commshell.png

  5. Click on the HALT button (outlined in red) in the commshell window.

    ../images/egse/halt.png

    All activity in the Mdpsim and Status monitor windows will cease.

It is now safe to turn off the power to the ICU as outlined in the next step of the procedure.
