Turning on the Flight Spare ICU

This procedure describes the steps to turn the flight spare ICU on.
When following these steps ensure that you are in contact with the blue grounding strap at all times.

Procedure

  1. Ensure that the right hand power switch of the psu is in the 'off' (down) position.

  2. Turn on the psu with the left hand power switch (switch up).

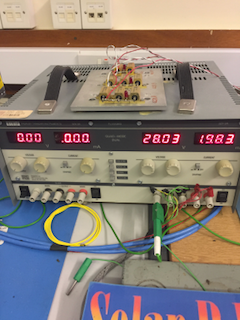

    ../photos/IMG_1990.png

    The right hand display shows the current limit setting.

  3. Flick the right hand power switch of the psu to the 'on' (up) position.

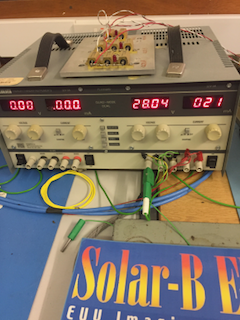

    ../photos/IMG_1991.png

    The current drawn should be similar to that shown in the photo (righthand-most display - 21 milliamps in this case).

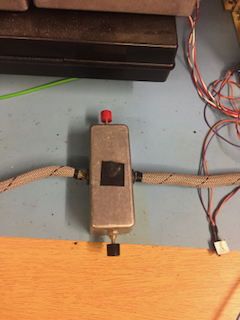

  4. Turn on the ICU by pressing the red button in and releasing it.

    ../photos/IMG_1986.png

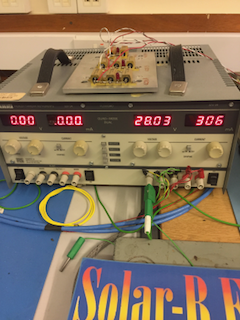

  5. The current draw on the psu should be similar to the right hand display:

    ../photos/IMG_1992.png

    If not turn the psu off: put the right hand power switch in the 'off' position. Walk away, don't look back.

    No, wait. Tell someone: Mark H, Rahil, Louisa, Matt, someone on the Hinode team.
