EIS Master Study Database

Testing the MHC default heaters studies (default_heaters) on the flight spare

Procedure

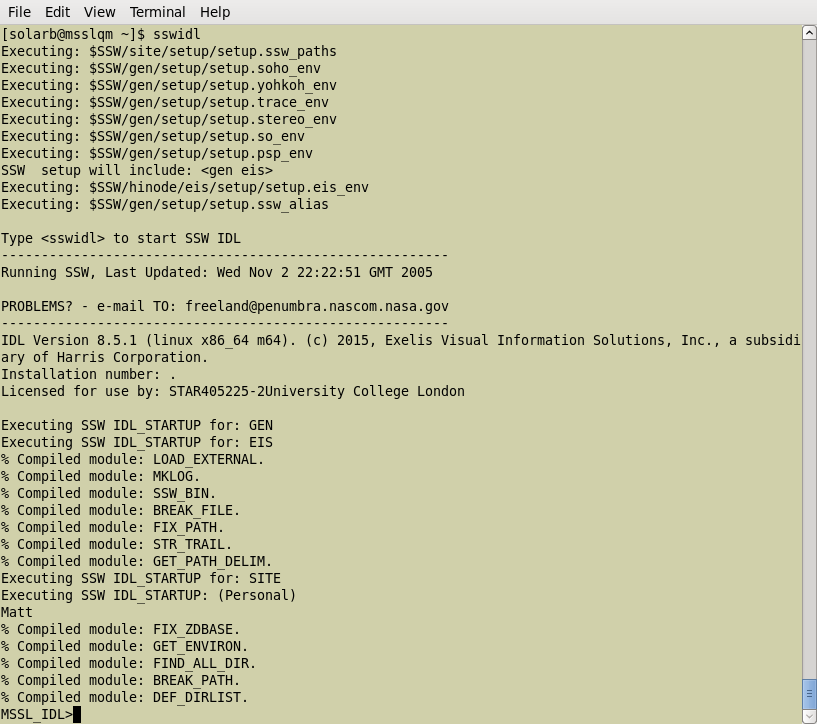

1. Start sswidl. In the xterm type:
   • sswidl ↩

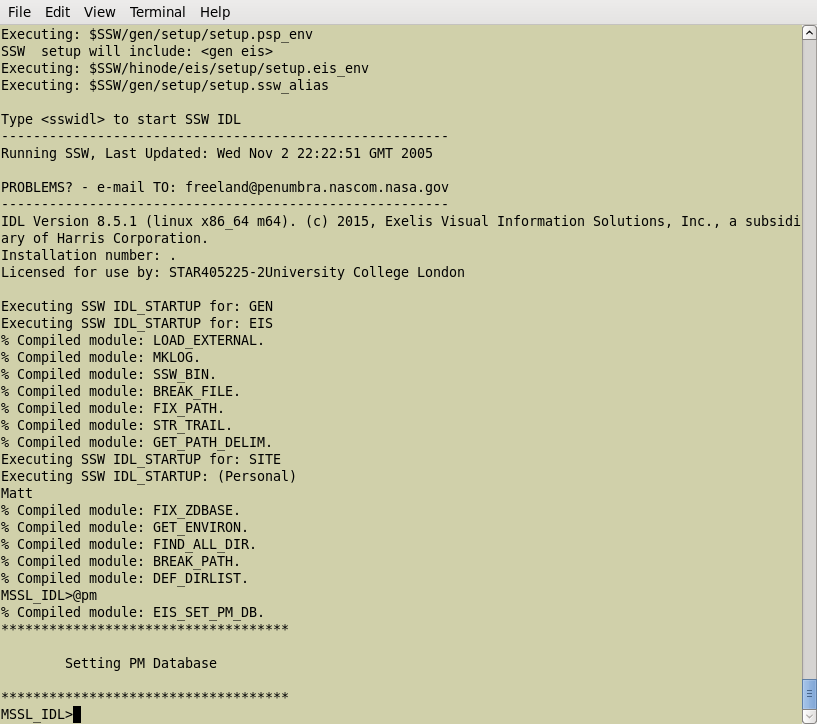

2. Select the testing (pm) database. In the xterm type:
   • @pm ↩



3. Start the planning software. In the xterm type:
   • @p ↩

   These three windows open:

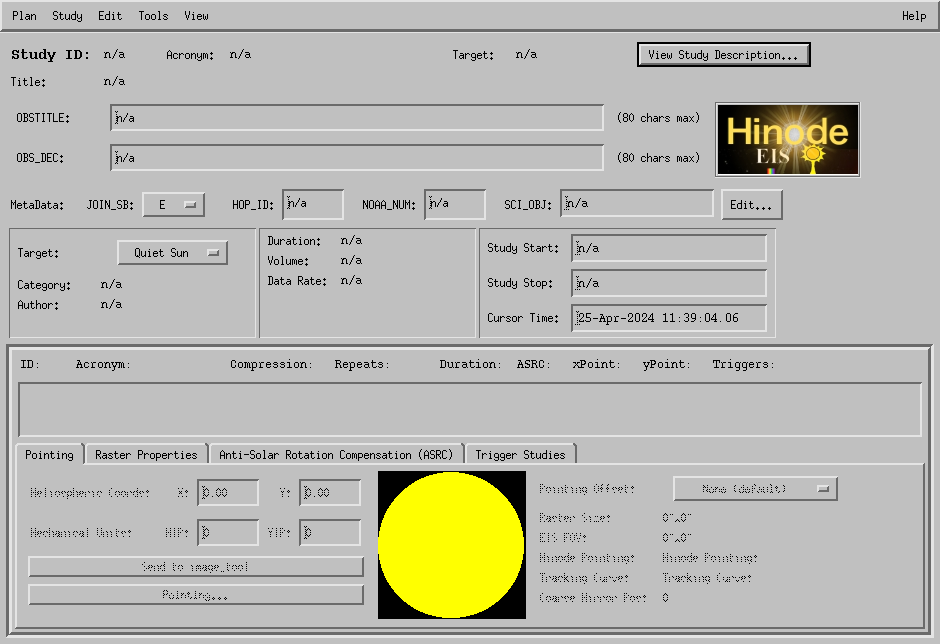

   • The main window

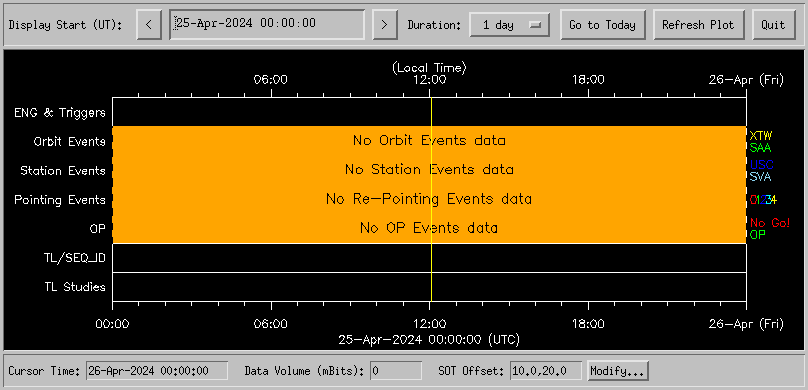

   • The timeline window

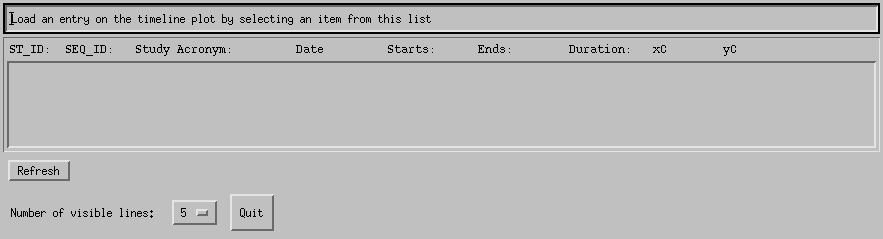

   • The summary window

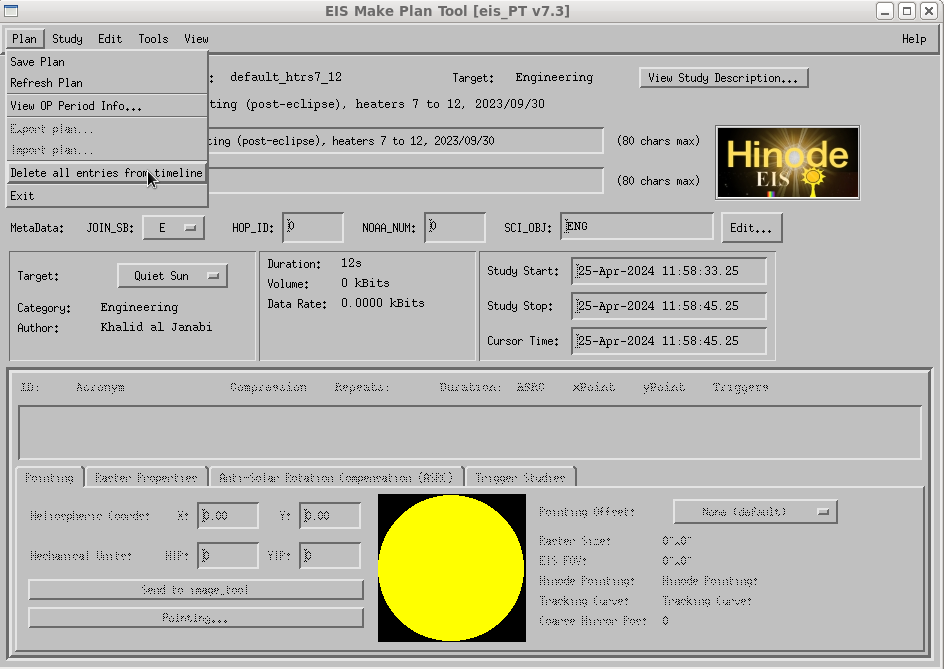

4. In the main window select clear timeline from the 'Plan' menu:

   •

   •
     If there are no timeline entries then this alert dialog window will appear:



     Close the alert by pressing the Ok button.
   •

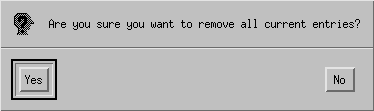

     If there are entries on the timeline this alert dialog window appears:



     Clear the timeline entries by pressing the Yes button.

     This also closes the dialog window.

5. In the main window add the default heater studies to the timeline:

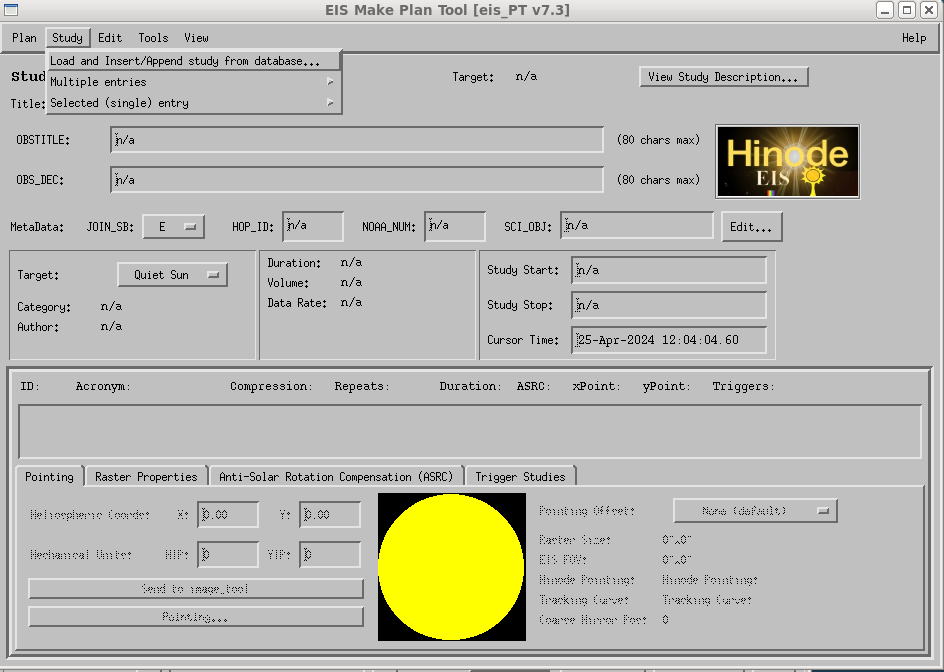

   • Load the first study (default_htrs1_6) by selecting the Load and Insert/Append study from database... menu item.

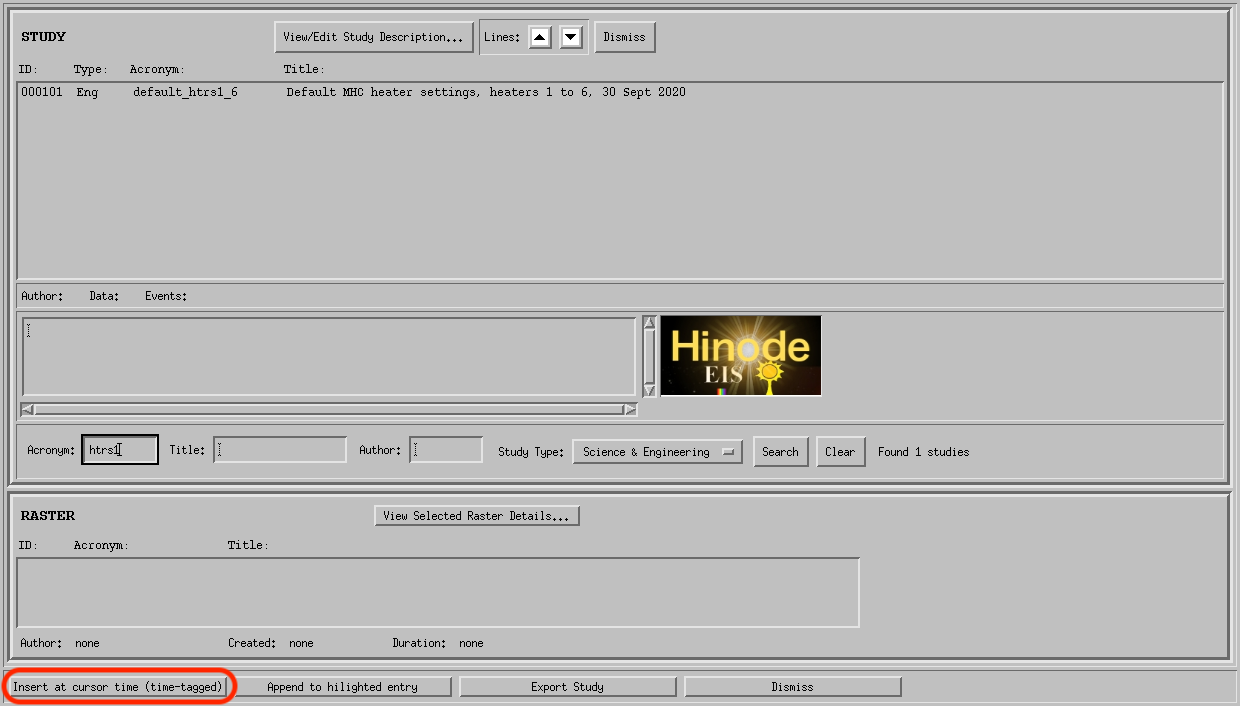

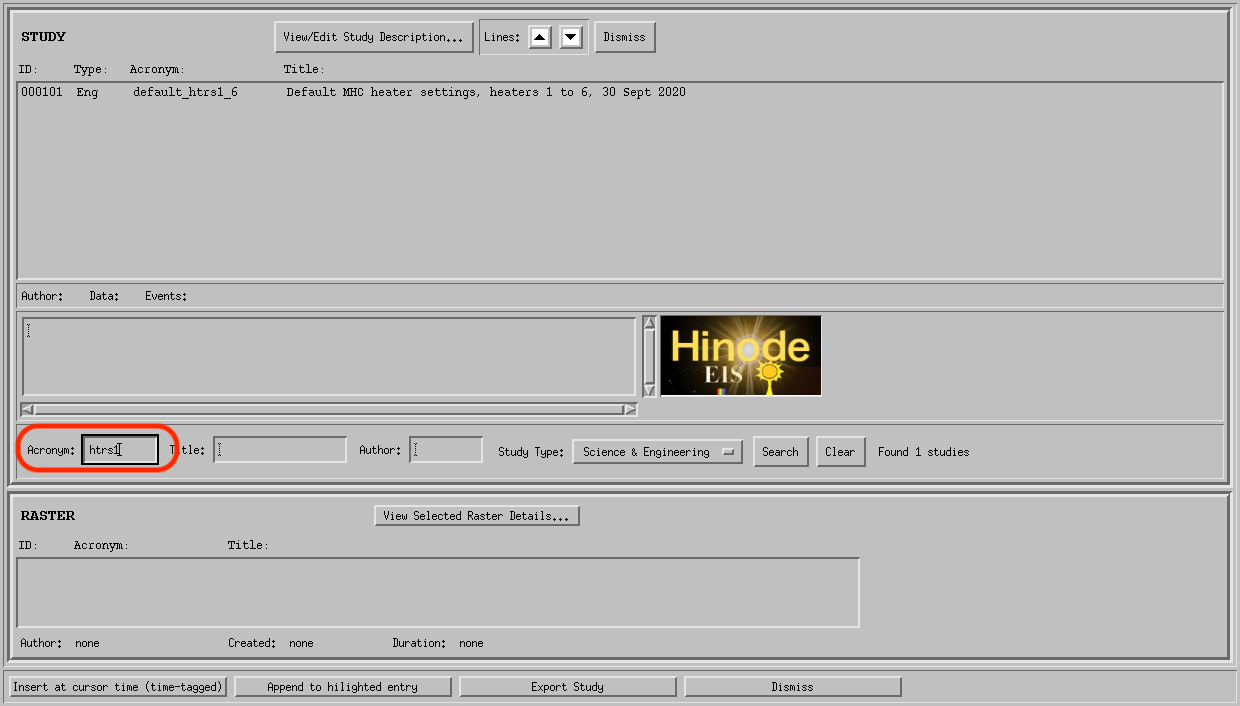

   • In the resulting window search for 'htrs_1' in the Acronym text box, circled in red.



     This will make the study appear in the big text field at the top of the window.

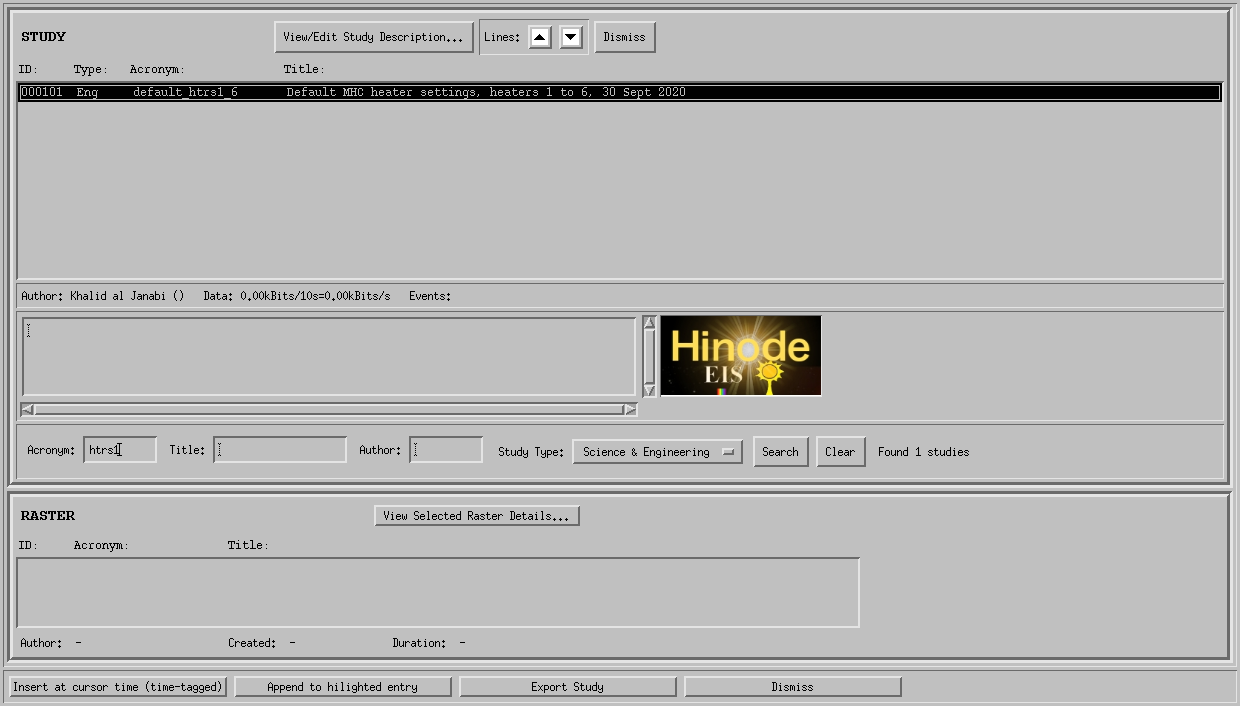

   • Select the study by clicking on the line:



   • Insert the study to the timeline:

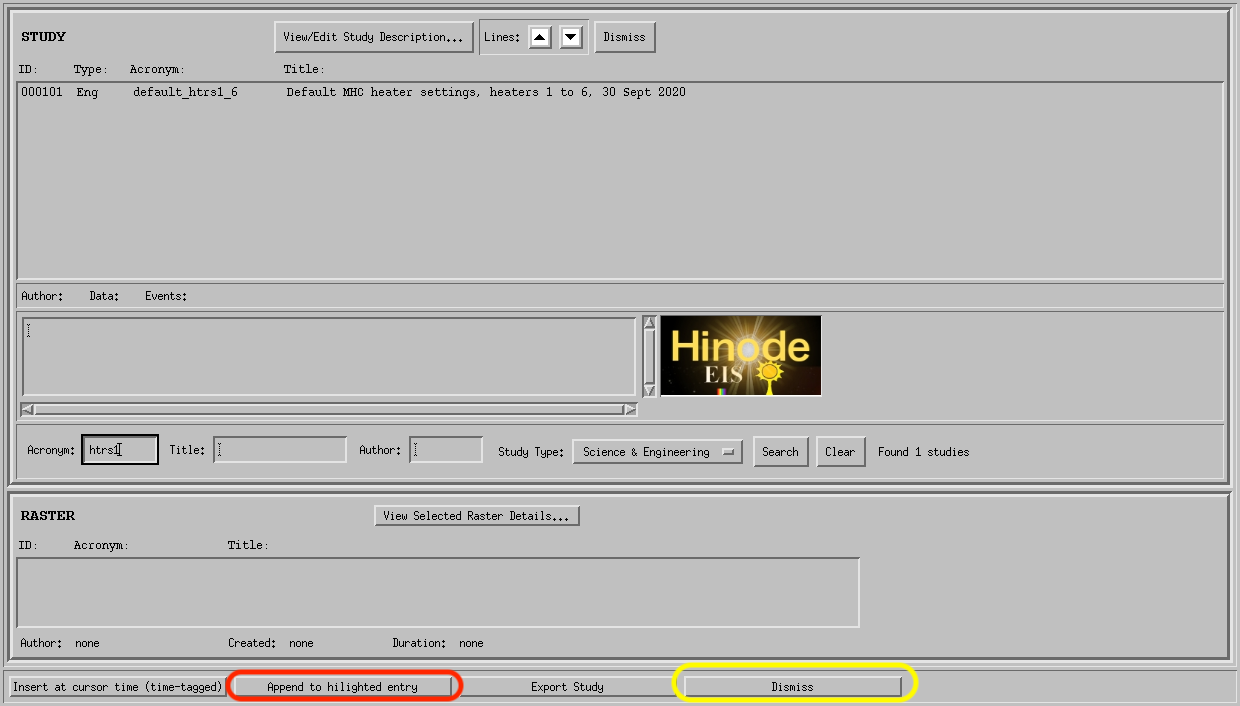

   • Follow these steps for the htrs7_12 study but append to the htrs1_6 study already on the timeline using the append button (highlighted in red):



   Close the window by pressing the Dismiss button (highlighted in yellow).

6. Run CPT which creates the plan:
7. Exit the planning tool
8. Exit sswidl. In the xterm type:
   • exit ↩

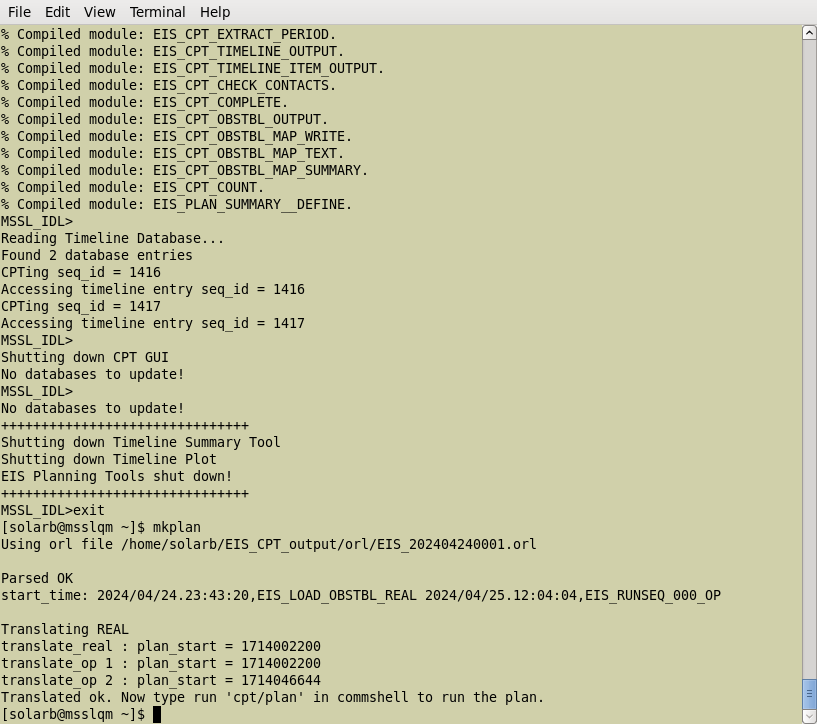

9. Translate the plan generated by the planning tool into the format readable by the EGSE. In the xterm type:
   • mkplan ↩
