Slide 29 of 31
Notes:

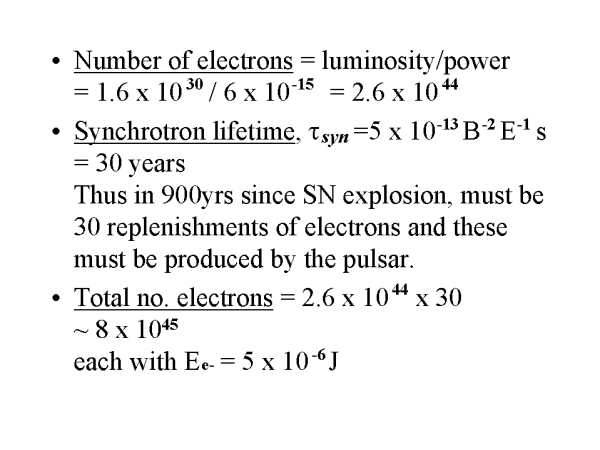

The synchrotron power radiated per electron is 2.4e12 E^2 B^2 J/s… and the total luminosity is calculated by multiplying the observed flux by 4.pi.distance^2, ie. we are assuming a spherical source.
