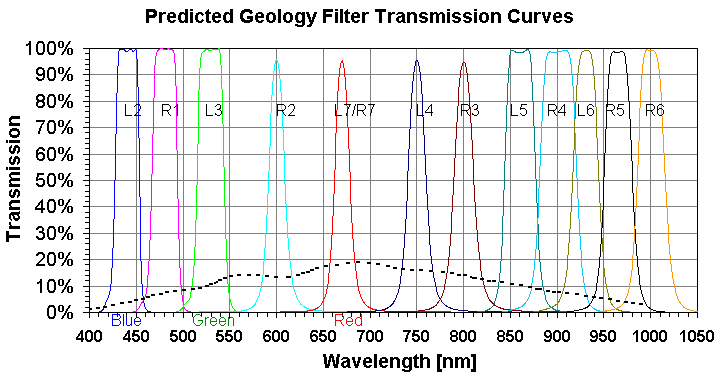

The Beagle 2 geology filter (plus 2 stereo - L7/R7 filters) transmission

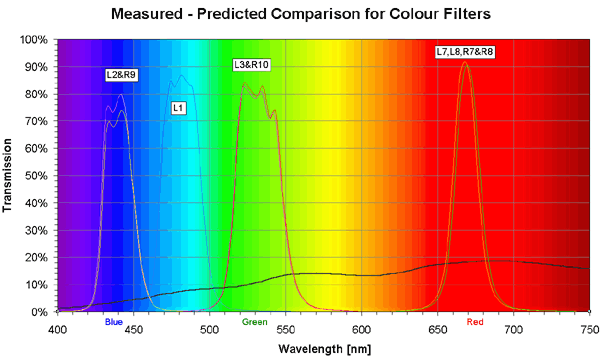

versus wavelength profiles. Five of these filters plus three of the lenticular
filters (below) can also be combined to produce colour images. The black
curves in each figure show the relative sensitivity of the CCD detector
to different wavelengths of light.
