Slide 43 of 59
Notes:

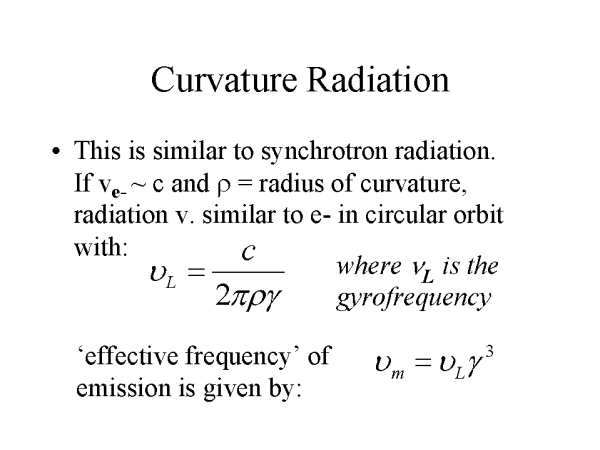

Curvature radiation is very similar to synchrotron radiation. If the velocity of the electrons is close to the speed of light and r is the radius of curvature, the radiation is then very similar to that of an electron in a circular orbit with a gyrofrequency given by the expression shown.
